ccna discovery 3 modul 3 exam answers versions 4.0

1

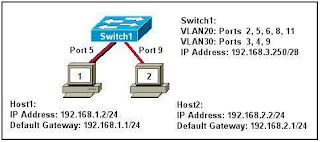

Refer to the exhibit. What two statements can be concluded from the information that is shown in the exhibit? (Choose two.)
  • All ports that are listed in the exhibit are access ports.
  • ARP requests from Host1 will be forwarded to Host2.
  • Attaching Host1 to port 3 will automatically allow communication between both hosts.
  • The default gateway for each host must be changed to 192.168.3.250/28 to allow communication between both hosts.
  • A router connected to the switch is needed to forward traffic between the hosts.
2

A router is configured to connect to a trunked uplink as shown in the exhibit. A packet is received on the FastEthernet 0/1 physical interface from VLAN 10. The packet destination address is 192.168.1.120. What will the router do with this packet?
  • The router will forward the packet out interface FastEthernet 0/1.1 tagged for VLAN 10.
  • The router will forward the packet out interface FastEthernet 0/1.2 tagged for VLAN 60.
  • The router will forward the packet out interface FastEthernet 0/1.3 tagged for VLAN 60.
  • The router will forward the packet out interface FastEthernet 0/1.3 tagged for VLAN 120.
  • The router will not process the packet since the source and destination are on the same subnet.
  • The router will drop the packet since no network that includes the source address is attached to the   router.
3 The information contained in a BPDU is used for which two purposes? (Choose two.)
  • to prevent loops by sharing bridging tables between connected switches
  • to set the duplex mode of a redundant link
  • to determine the shortest path to the root bridge
  • to determine which ports will forward frames as part of the spanning tree
  • to activate looped paths throughout the network

4 A router has two serial interfaces and two Fast Ethernet interfaces. This router must be connected to a WAN link and to a switch that supports four VLANs. How can this be accomplished in the most efficient and cost-effective manner to support inter-VLAN routing between the four VLANs?
  • Connect a smaller router to the serial interface to handle the inter-VLAN traffic.
  • Add two additional Fast Ethernet interfaces to the router to allow one VLAN per interface.
  •  Connect a trunked uplink from the switch to one Fast Ethernet interface on the router and create logical subinterfaces for each VLAN.
  • Use serial-to-Fast Ethernet transceivers to connect two of the VLANs to the serial ports on the router. Support the other two VLANs directly to the available FastEthernet ports.

5 When are MAC addresses removed from the CAM table?
  • at regular 30 second intervals
  • when a broadcast packet is received
  • when the IP Address of a host is changed
  • after they have been idle for a certain period of time

6


Refer to the exhibit. Switch1 is not participating in the VTP management process with the other switches. Which two are possible reasons for this? (Choose two.)
  • Switch2 is in transparent mode.
  • Switch1 is in client mode.
  • Switch1 is using VTP version 1 and Switch2 is using VTP version 2.
  • Switch2 is in server mode.
  • Switch1 is in a different management domain.
  • Switch1 has no VLANs.

7 Which three must be used when a router interface is configured for VLAN trunking? (Choose three.)
  • one subinterface per VLAN
  • one physical interface for each subinterface
  • one IP network or subnetwork for each subinterface
  • one trunked link per VLAN
  • a management domain for each subinterface
  • a compatible trunking protocol encapsulation for each subinterface

8


Refer to the exhibit. The switches are connected with trunks within the same VTP management domain. Each switch is labeled with its VTP mode. A new VLAN is added to Switch3. This VLAN does not show up on the other switches. What is the reason for this?
  • VLANs cannot be created on transparent mode switches.
  • Server mode switches neither listen to nor forward VTP messages from transparent mode switches.
  • VLANs created on transparent mode switches are not included in VTP advertisements.
  • There are no ports assigned to the new VLAN on the other switches.
  •  Transparent mode switches do not forward VTP advertisements.

9 Which two criteria are used by STP to select a root bridge? (Choose two.)
  • memory size
  • bridge priority
  • switching speed
  • number of ports
  • base MAC address
  • switch location

10 Which three steps should be taken before moving a Catalyst switch to a new VTP management domain? (Choose three.)
  • Reboot the switch.
  • Reset the VTP counters to allow the switch to synchronize with the other switches in the domain.
  • Download the VTP database from the VTP server in the new domain.
  • Configure the VTP server in the domain to recognize the BID of the new switch.
  • Select the correct VTP mode and version.
  • Configure the switch with the name of the new management domain.

11 Which two items will prevent broadcasts from being sent throughout the network? (Choose two.)
  • bridges
  • routers
  • switches
  • VLANs
  • hubs

12 Which two characteristics describe a port in the STP blocking state? (Choose two.)
  • provides port security
  • displays a steady green light
  • learns MAC addresses as BPDUs are processed
  • discards data frames received from the attached segment
  • receives BPDUs and directs them to the system module

13 What is the first step in the process of convergence in a spanning tree topology?
  • election of the root bridge
  • determination of the designated port for each segment
  • blocking of the non-designated ports
  • selection of the designated trunk port
  • activation of the root port for each segment

14 In which STP state does a switch port transmit user data and learn MAC addresses?
  • blocking
  • learning
  • disabling
  • listening
  • forwarding

15 What is the purpose of VTP?
  • maintaining consistency in VLAN configuration across the network
  • routing frames from one VLAN to another
  • routing the frames along the best path between switches
  • tagging user data frames with VLAN membership information
  • distributing BPDUs to maintain loop-free switched paths

16 Which statement best describes adaptive cut-through switching?
  • The switch initially forwards all traffic using cut-through switching and then changes to store-and-forward switching if errors exceed a threshold value.
  • The switch initially forwards all traffic using cut-through switching and then changes to fast-forward switching if errors exceed a threshold value.
  • The switch initially forwards all traffic using cut-through switching and then temporarily disables the port if errors exceed a threshold value.
  • The switch initially forwards all traffic using store-and-forward switching and then changes to cut-through switching if errors exceed a threshold value.

17 Using STP, how long does it take for a switch port to go from the blocking state to the forwarding state?
  • 2 seconds
  • 15 seconds
  • 20 seconds
  • 50 seconds

18

Refer to the exhibit. The switches are interconnected by trunked links and are configured for VTP as shown. A new VLAN is added to Switch1. Which three actions will occur? (Choose three.)
  • Switch1 will not add the VLAN to its database and will pass the update to Switch 2.
  • Switch2 will add the VLAN to its database and pass the update to Switch3.
  • Switch3 will pass the VTP update to Switch4.
  • Switch3 will add the VLAN to its database.
  • Switch4 will add the VLAN to its database.
  • Switch4 will not receive the update.

19 Which Catalyst feature causes a switch port to enter the spanning-tree forwarding state immediately?
  • backbonefast
  • uplinkfast
  • portfast
  • rapid spanning tree

20

Refer to the exhibit. Which set of commands would be used on the router to provide communication between the two hosts connected to the switch?
  •  Router(config)# interface vlan 2
     Router(config-if)# ip address 192.168.2.1 255.255.255.0
     Router(config-if)# no shutdown
     Router(config)# interface vlan 3
     Router(config-if)# ip address 192.168.3.1 255.255.255.0
     Router(config-if)# no shutdown
  •  Router(config)# interface fastethernet 0/0
     Router(config-if)# no shutdown
     Router(config-if)# interface fastethernet 0/0.2
     Router(config-subif)# encapsulation dot1q 2
     Router(config-subif)# ip address 192.168.2.1 255.255.255.0
     Router(config-if)# interface fastethernet 0/0.3
     Router(config-subif)# encapsulation dot1q 3
     Router(config-subif)# ip address 192.168.3.1 255.255.255.0

  •  Router(config)# interface vlan 2
     Router(config-if)# switchport mode trunk dot1q
     Router(config)# interface vlan 3
     Router(config-if)# switchport mode trunk dot1q
  •  Router(config)# interface fastethernet 0/0
     Router(config-if)# mode trunk dot1q 2 3
     Router(config-if)# ip address 192.168.2.1 255.255.255.0
